RW168-CUSCINETTO AD ANELLO INTERNO ESTESO DELLA SERIE DI POLLICI

Hot tags:MTWB Bearing RW168-Inch Series Extended Inner Ring Bearing a specialized manufacturer of tailor-made ball or roller bearings, Our engineers offer technical support all along, making MTWB an ideal OEM bearing partner for international OEM.
Inch Series Extended Inner Ring Bearing
Request Quote >
  • Inch Series Extended Inner Ring Bearing
  • Inch Series Extended Inner Ring Bearing

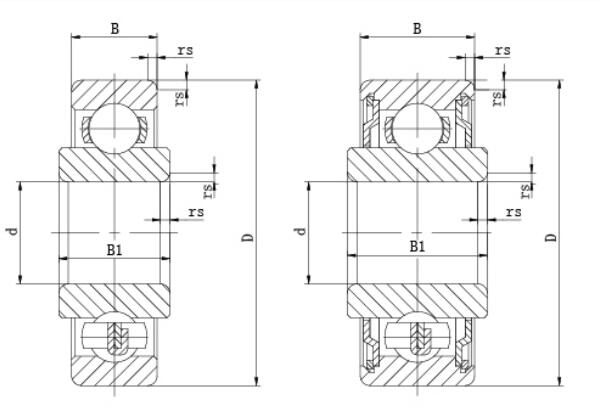

Dimension and Parameters

BEARING NO. :RW168
Bore Diameter
d(mm) :6.35
Outer Diameter
D(mm) :9.525
Width
Outer ring
B(mm) :3.175
Inner ring
B(mm) :3.967
Chamfer
rs(min) (mm) :0.1
Basic Load
Cr(N) :373
Cor(N) :172
Max Speed
Grease(X1000rpm) :48
Max Speed
Open(X1000rpm) :56
